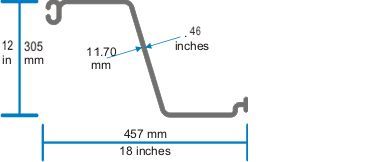

TW95 2D Drawing






TW95
Standard color
Light gray
Custom colors
Clay, Slate, Others
UV Protection
TW95 is made from highly weatherable, UV-stabilized rigid PVC
60 Year Warranty
TW95 is covered by a transferable Limited 60 year Warranty that protects against manufacturing defects
    Standard Metric
Constituent Material
PVC, Exterior Grade Rigid Only
PVC, Exterior Grade Rigid Only
Section Width (W)
18 inches
457 mm
Section Depth (D)
12 inches
305 mm
Section Thickness (T)
.460 inches
11.70 mm
Weight
9.00 lbs/lineal foot
13.25 kg/lineal meter
Moment of Inertia
235.6 in4/ft
32,179 cm4/m
Section Modulus
37.0 in3/ft
1,990 cm3/m
Ultimate Moment
20,052 ft-lb/ft
9,224 kg-m/m
Allowable Moment
10,026 ft-lbs/ft
4,612 kg-m/m
Tensile Strength ASTM-D638
6,500 lbs/in2
44.8 Mpa
Flexural Strength ASTM-D790
11,140 Psi
78.0 Mpa
Modulus of Elasticity ASTM-D790
380,000 Psi
2,620 Mpa
Notched Izod Impact ASTM-D256
13.75 lbs/in
2.46 kg/cm
Heat Deflection Temp. ASTM-D648
158 degrees F
70 degrees C
